Build Your Own Dell PowerEdge R740 | Custom R740 Configurator
Maximize performance and flexibility with our Dell PowerEdge R740 Build-Your-Own Servers. Designed for IT professionals, home lab enthusiasts, and server beginners, this 2U rack server allows you to customize processors, memory, storage drives, RAID controllers, and networking options to meet your exact workload requirements.
The R740 is ideal for virtualization, private cloud infrastructure, high-performance computing, and data storage, delivering enterprise-grade reliability, scalability, and efficiency. Every custom server is professionally assembled, thoroughly tested, and backed by our 365-day warranty with a money-back satisfaction guarantee, ensuring peace of mind with every build.
Build a Dell PowerEdge R740 server tailored for performance, storage, and flexibility—perfect for businesses, labs, or IT projects.
Choose from Three R740 Storage Options

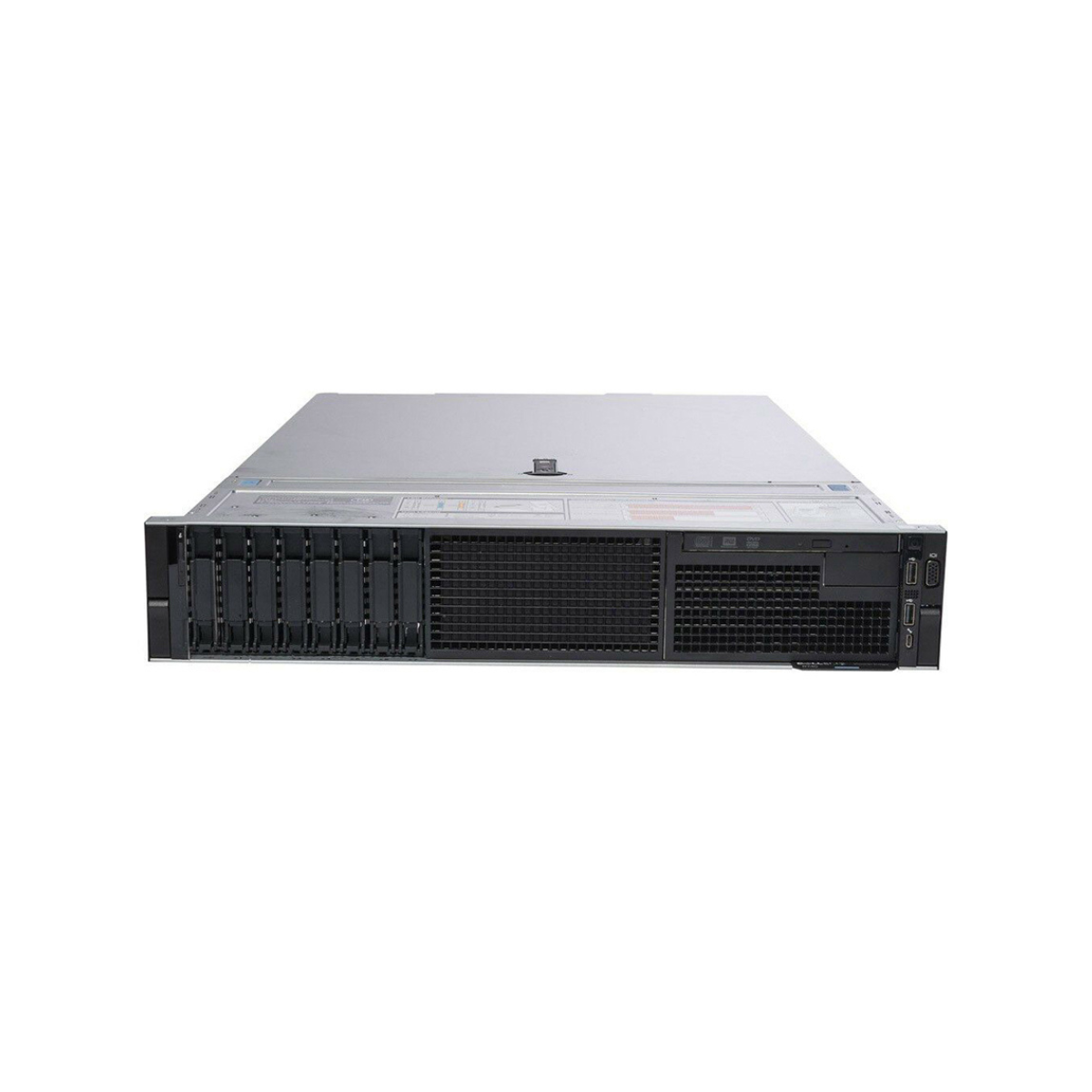

Option 1: Dell PowerEdge R740 8-Bay Server
8-Bay 2.5" Chassis
Balance cost and performance with this versatile option, offering eight 2.5" drive bays for flexible storage configurations.

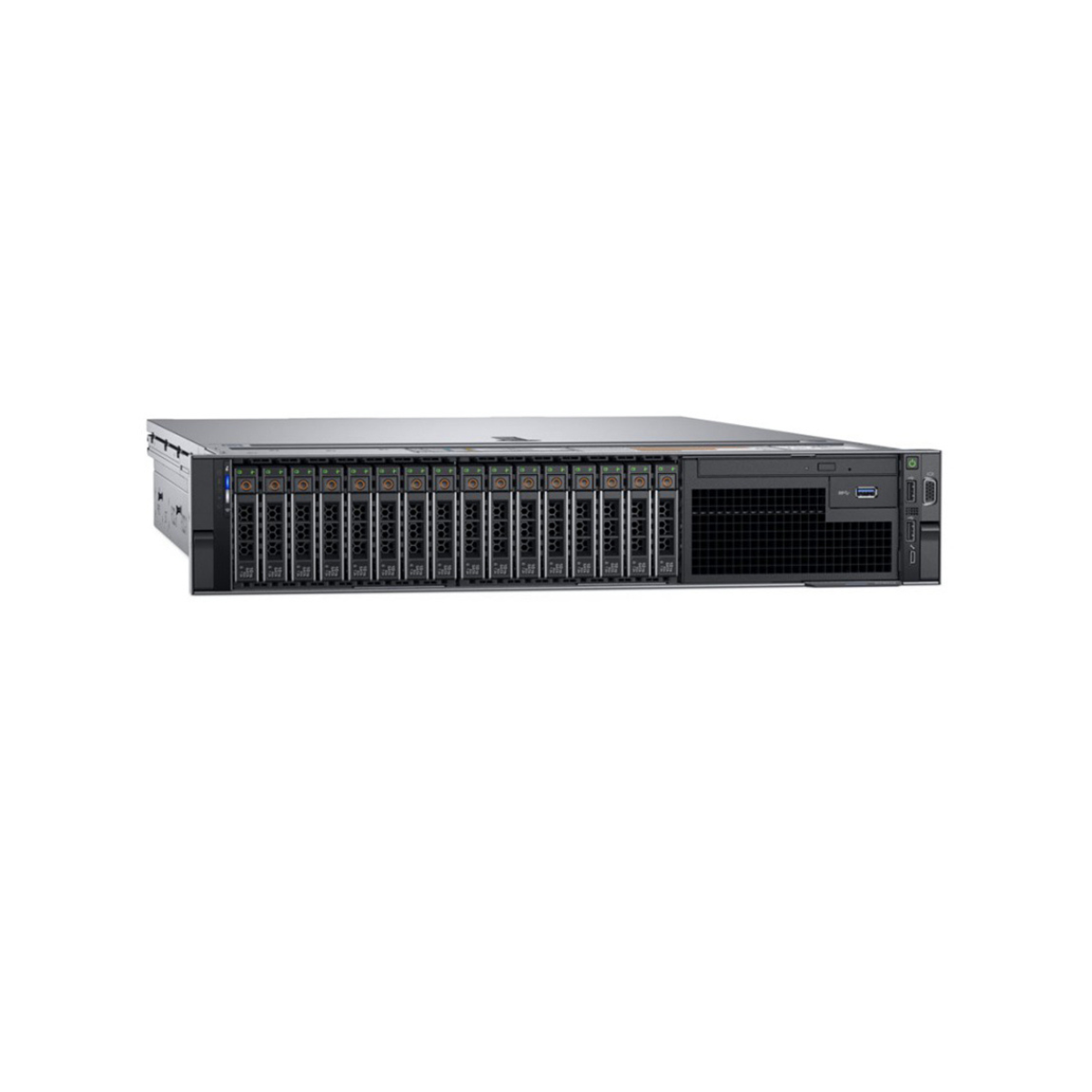

Option 2: Dell PowerEdge R740 16-Bay Server
16-Bay 2.5" Drive Option
The 16-bay 2.5" drive high-performance, adaptable 2U rack server is designed to maximize application performance with the right combination.

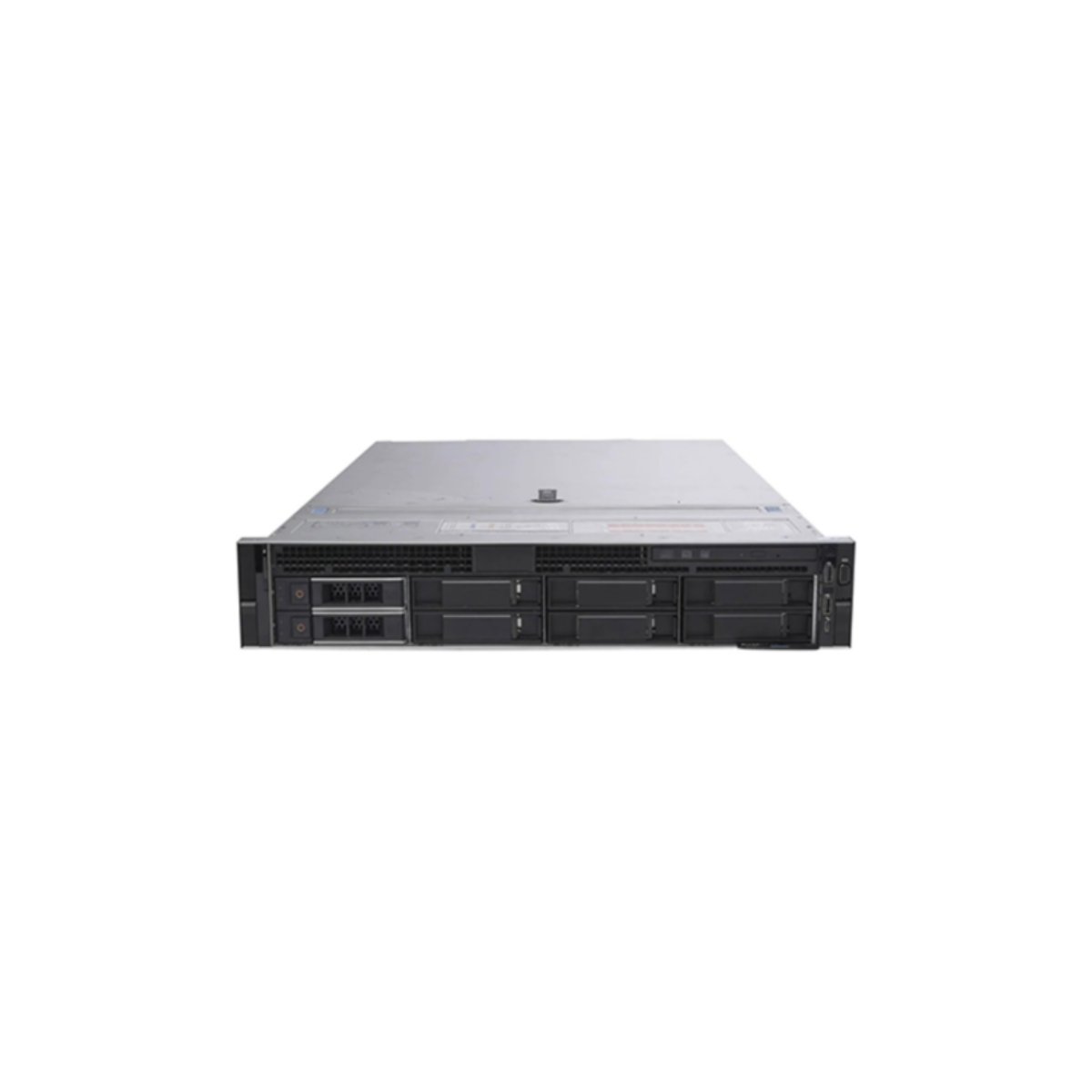

Option 3: Dell PowerEdge R740 8-Bay Server
8-Bay 3.5" Drive Option
With 80 PLUS Platinum-certified power supply, the server can support up to 3TB of DDR4 memory over 24 DIMM slots.
Dell PowerEdge R740 Server
Specifications & Resources
R740 Model Overview
Overview
The Dell PowerEdge R740 is a powerful and adaptable 2-socket, 2U rack server that maximizes application performance through an appropriate combination of accelerator cards, storage, and compute power. It is best suited for virtualization, software-defined storage, and data-intensive applications.
Performance
The PowerEdge R740 is powered by Intel Xeon Scalable processors, with options ranging from the Bronze to the Platinum series. This server supports up to 3TB of DDR4 memory across 24 DIMM slots, providing exceptional performance for demanding workloads.
Storage Options
This server model offers flexible storage configurations:
- Up to 16 x 2.5" SAS/SATA/SSD drives: Ideal for high-performance storage needs.
- Up to 8 x 3.5" SAS/SATA drives: Suitable for high-capacity storage solutions.
- Boot Optimized Storage Subsystem (BOSS): Supports M.2 SSDs for efficient boot drives.
Networking
The PowerEdge R740 includes integrated dual 1GbE network ports, providing reliable connectivity for most business applications. For enhanced networking capabilities, additional PCIe slots are available for network expansion cards, allowing for further customization.
Energy Efficiency
Equipped with 80 PLUS Platinum-certified power supplies, the PowerEdge R740 is designed to reduce power consumption and operational costs. Its 2U form factor also contributes to efficient use of data center space.
Management
The server incorporates Dell's integrated Dell Remote Access Controller (iDRAC9) and Lifecycle Controller, which provide complete remote management capabilities. This enables admins to monitor, administer, upgrade, and deploy the server from anywhere, resulting in minimal downtime and peak performance.
Use Cases
The Dell PowerEdge R740 is suitable for a variety of use cases, including:
- Virtualization
- Software-defined storage
- Data analytics
- High-performance computing (HPC)
- Database management
Why Choose This Server?
The Dell PowerEdge R740 is notable for its performance, scalability, and ease of management. It is built to handle heavy workloads efficiently, making it a dependable option for enterprises trying to improve their IT infrastructure. The PowerEdge R740 is a superb investment for modern data centers, thanks to its powerful performance, versatile storage options, and intelligent management tools.
