HPE Proliant DL560 G9 Server Options

 2U rack server designed to handle demanding workloads.

This server is great for enterprises that want to consolidate workloads and scale efficiently, as it supports up to four processors. The DL560 Gen9 offers a variety of configuration options to satisfy specific business requirements, including customizable storage, memory, and networking. It is especially well-suited for businesses that need a balance of performance, capacity, and efficiency. Provides full networking capabilities, ensuring fast connectivity and easy integration into enterprise networks.

The DL560 G9 Includes One Storage Option

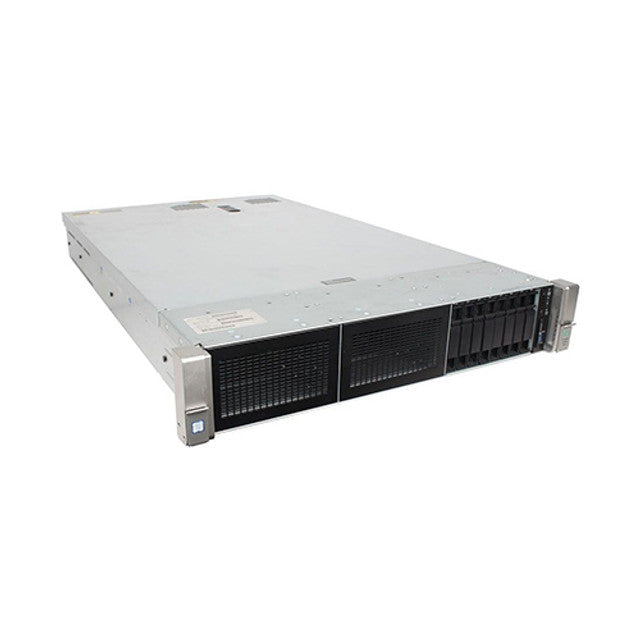

Option 1: HPE DL560 G9 8-Bay Server

8-Bay 2.5" Chassis

Balance cost and performance with this versatile option, offering eight 2.5" drive bays for flexible storage configurations.

Configure DL560 G9 8-Bay Server

HPE DL560 G9 Server

Specifications & Resources

Overview

The HPE ProLiant DL560 Gen9 is a powerful and highly versatile 2U rack server designed to handle demanding workloads while providing exceptional scalability, efficiency, and performance. It is optimized for a wide range of applications, including virtualization, enterprise computing, big data, and high-performance computing (HPC). With support for up to 4 processors, this server is ideal for businesses looking to consolidate workloads and scale efficiently.

The DL560 Gen9 comes with various configuration options to meet specific business needs, including flexible storage, memory, and networking choices. It is particularly well-suited for organizations that require a balance of performance, capacity, and efficiency.

Performance

The HPE ProLiant DL560 Gen9 is engineered for high-performance workloads, ensuring that businesses can run mission-critical applications without compromise.

  • Processors: The DL560 Gen9 supports up to 4 Intel Xeon E5-4600 v3 or v4 series processors, offering up to 22 cores per processor. This provides a massive performance boost, especially for applications that require significant parallel processing or multi-threading, such as virtualization, database management, and scientific computing.
  • Memory: The server supports up to 3TB of DDR4 memory across 48 DIMM slots, allowing for exceptional memory bandwidth and fast data access. This makes the DL560 Gen9 ideal for large virtualized environments, big data analytics, and other memory-intensive tasks.
  • Expansion: The DL560 Gen9 provides multiple PCIe 3.0 slots, enabling businesses to add expansion cards like additional network adapters, storage controllers, or graphics processing units (GPUs) to meet specific workload requirements.

Storage Options

The HPE ProLiant DL560 Gen9 offers a range of storage options to cater to different needs, including configurations for both high-performance SSDs and large-capacity HDDs.

  • Drive Bays: The server is available with different drive configurations, such as:
  • Storage Expansion: For growing data requirements, the DL560 Gen9 supports external storage expansion via SAS and iSCSI interfaces, allowing businesses to scale storage as needed.

Networking Options

The HPE ProLiant DL560 Gen9 offers comprehensive networking capabilities, ensuring high-speed connectivity and seamless integration into enterprise networks.

  • Standard Networking: The DL560 Gen9 comes with 4 x 1GbE Ethernet ports by default, providing robust connectivity for most applications.
  • Optional Networking: The server can be upgraded to 10GbE, 40GbE, or Fibre Channel cards for environments requiring higher bandwidth, such as large-scale virtualized infrastructures, cloud environments, and data centers. This ensures fast data transfer rates and reduced latency in high-traffic workloads.
  • Advanced Networking Features: The DL560 Gen9 also supports features like NIC teaming, load balancing, and network offload, which enhance the overall network performance, improve fault tolerance, and ensure continuous availability.

Energy Efficiency

The HPE ProLiant DL560 Gen9 is built with energy efficiency in mind, minimizing power consumption without compromising on performance.

  • Power Supply Options: The server is equipped with dual redundant, hot-pluggable power supplies, available in various wattages (500W to 1600W). The power supplies are 80 PLUS Platinum or Gold certified, ensuring high energy efficiency and reducing operational costs.
  • Dynamic Power Management: The server includes advanced power management capabilities, which adjust power consumption based on workload demands, optimizing energy use and further reducing costs.
  • Thermal Management: The DL560 Gen9 features a comprehensive thermal management system with efficient airflow and fan speed adjustments, ensuring optimal cooling without excessive power usage.

Management

The HPE ProLiant DL560 Gen9 incorporates advanced management tools to help administrators efficiently manage and monitor the server environment.

  • HPE Integrated Lights Out (iLO): iLO provides out-of-band management with features like remote server monitoring, troubleshooting, and configuration. iLO enables administrators to control server functions remotely, reducing the need for physical presence and improving uptime.
  • HPE OneView: The OneView management suite offers a centralized platform for managing and monitoring HPE ProLiant servers, simplifying tasks such as firmware updates, hardware monitoring, and configuration management.
  • Security Features: The DL560 Gen9 includes robust security features, such as Secure Boot, TPM 2.0, and HPE Silicon Root of Trust, ensuring that the system remains secure against unauthorized access and data breaches.

Use Cases

The HPE ProLiant DL560 Gen9 is suitable for a wide range of enterprise workloads, providing performance, scalability, and flexibility for various use cases.

  • Virtualization: With up to 4 processors, large memory capacity, and various storage options, the DL560 Gen9 is ideal for running virtual machines in environments like VMware, Microsoft Hyper-V, and OpenStack.
  • Enterprise Applications: The server is perfect for hosting resource-intensive applications such as Enterprise Resource Planning (ERP), Customer Relationship Management (CRM), and business intelligence systems.
  • Cloud and Data Center Infrastructure: For cloud service providers or large-scale data centers, the DL560 Gen9 offers the performance and scalability to handle fluctuating workloads and provide reliable service to customers.
  • Big Data and Analytics: The server’s high memory capacity, fast storage options, and robust processors make it well-suited for data analytics applications, including real-time data processing, predictive analytics, and machine learning.
  • High-Performance Computing (HPC): With its multi-core processors and large memory configurations, the DL560 Gen9 can handle scientific computing tasks, simulations, and other high-performance computing workloads that require powerful computation.

Why Choose the HPE ProLiant DL560 Gen9?

The HPE ProLiant DL560 Gen9 offers exceptional flexibility and performance for organizations seeking to consolidate workloads, scale IT infrastructure, and address a variety of enterprise computing needs. The support for up to 4 processors and a massive amount of memory ensures that businesses can run demanding applications and virtualized environments without compromise.

With a range of storage options, including high-capacity 3.5" and high-performance 2.5" drives, as well as customizable networking capabilities, the DL560 Gen9 adapts to various business requirements. Energy-efficient design features reduce operational costs while ensuring the server delivers consistent, high-performance results.

This server is an excellent choice for enterprises looking to optimize their IT infrastructure, improve data center efficiency, and scale their operations to meet future demands.
